IoT Products

Smart Access Management

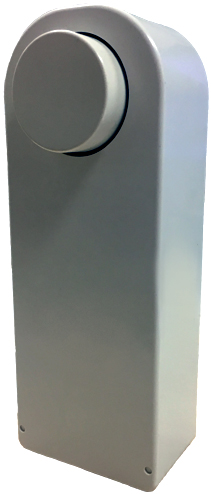

ILK3000x Smart Lock

ILK3000x is a Smart lock thought to facilitate the entry management to tourist apartments and other similar uses.
ILK3000x is managed through a Platform in the management and operation cloud.
The final user uses a mobile app to communicate with the platform and knocks the door with their knuckles to ‘awaken’ ILK3000x. The platform checks the user’s identity and the permits they have, and according to that it orders the opening of the door. Optionally, BLE can be used to cross verify in the presence of the user.
ILK3000x can detect the estate of the open door and inform about the door to the Platform.
Firmware can be set to be adjusted to the operational mode required by the client.
It can be paired through BLE up to 3 telephones, with which ILK3000x acts like a NB-IOT Gateway towards the Platform to control the entry.

Technical characteristics

• Easy installation. It only needs to substitute the lock cylinder.
• Accelerometer to detect the know with knuckles at the door
• It detects if the door is open
• USB Rechargeable battery to be charged by a power supply
• Communications:
– Bluetooth 4.2 for local setting and communication with entry telephone
– NB-IoT: Model IKL3000nb
– WiFi: Model IKL3000w
• High Performance Printed Antenna
• High torque engine
• Automatic clutch. Blockage can be actioned manually while the engine is not working.
• Nice design
• Size: 70 x 170 x 45 mm
• Working temperature: -20 to 55ºC

Datasheet

Download Datasheet IKL3000-NB ENG

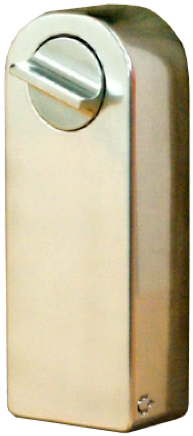

ILK3010nb Smart lock

ILK3010nb is a Smart lock thought to facilitate access control to unattended spaces like telecommunications cabins, electricity shed, etc. and other similar applications.
ILK3010nb performs from a Platform in the Management and Operation cloud.
The user communicates with the platform and with a ILK3010nb lock through a mobile app to obtain the right to access and open the door.
ILK3010nb can detect when the door is open and report automatically the door activity to the Platform. Firmware can be set to be adjusted to the operational mode required by the client.

Technical characteristics

• Easy installation. It only needs to substitute the lock cylinder.
• It detects if the door is open
• Power source
• Communications:
– Bluetooth 4.2 for local setting and communication with the user’s mobile phone
– NB-IoT
• High Performance Printed Antenna
• High torque engine
• Automatic clutch. Blockage can be actioned manually while the engine is not working.
• Ruggedized design
• Size: 70 x 170 x 45 mm
• Working temperature: -20 a 55ºC

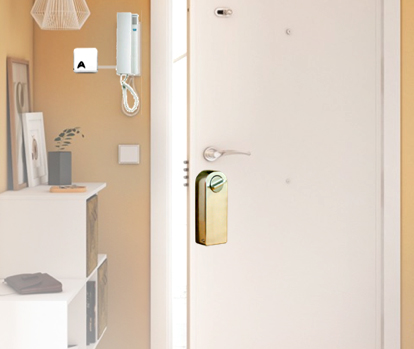

ILK3001 Smart Intercom

ILK3001 is ILK3000 partner for the entryphone that is used to detect the door bell and to activate the door opener.
ILK3001 is connected to ILK3000nb by an interface. BLE interface. ILK3000nb acts like a Gateway to connect to the Platform in the cloud.
The final user uses a mobile app to communicate with the platform and open the street door.

Technical characteristics

• Easy installation
• Powered by the house intercom
• It can detect the bell and open the main door of the building
• Bluetooth 4.2 for local setting and communication with ILK3000
• Nice design
• Size: 60 x 60 x 15 mm
