Telecom Access Products

Mobile Networks

Fixed Terminal (FWP)

Technical characteristics

• 3G/2G Fixed Mobile Terminal for voice services
• LCD 128×64 backlit screen
• Work bands:
– UMTS: 900/2100 ó 850/1900 ó 900/1900 MHz
– GSM: 850/900/1800/1900 MHz
• SMS management
• Hands-Free
• Memory keys and speed dial
• Alarm
• Calculator
• Additional services
• Backup internal battery
• Integrated antenna or external antenna

Router 4G voice and data

Technical characteristics

• Router Multiband Multimode to access the Internet via 4G with 3G backup
• Multiband Multimode
• Radio Interface:
– Lte FDD Cat4:150/50 Mbps (DL/UL)
– DC-HSPA+:42/5.76 Mbps(DL/UL)
• Cell Work Bands:
– FDD Lte: B1, B2, B3, B5, B7, B20, B28, B66
– UMTS/DC-HSPA+ B1, B2, B5, B8
– GSM/GPRS/EDGE: 850/900/1800/1900 MHz
– Two internal antennae and 2 SMA connectors
• WiFi interface:
– Access Point 802.11b/g/n; 2,4GHz
– Two internal antennae.
• LAN & WAN Interface:
– 4xRJ45 LAN Ethernet 10/100BT
– 1xRJ45 WAN Ethernet 10/100BT
• WEB server for settings and management
• USB Port

Fixed Terminal (FWP)

Technical characteristics

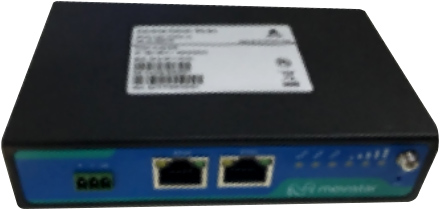

• Industrial Range Router
• WWAN, LAN and WiFi Interfaces
• Radio Interface (WWAN) Multiband, Multimode:
– FDD Lte Cat4 :150/50 Mbps (DL/UL)
– DC-HSPA+:42/5.76 Mbps(DL/UL)
• Work Bands:
– FDD Lte: B1, B2, B3, B4, B5, B7, B8, B20, B28
– UMTS/DC-HSPA+ B1, B2, B3, B5, B8
– GSM/GPRS/EDGE: Quadband 850/900/1800/1900 MHz
• 2xSMA to connect antennae Lte
• WiFi Interface:
– Access Point 802.11b/g/n, 2,4GHz, 2*2 MIMO
– 2x SMA SMA to connect antennae WiFi
• LAN Interface:
– 2xRJ45 LAN Ethernet 10/100BT
• WEB server for settings and management

Router 4G voice and data

Technical characteristics

• Modem USB Multiband Multimode
• USB 2.0 Interfaces
• Auto Installable
• USIM Slot, supports MicroSD hasta 64GB
• Radio Interface:
– FDD Lte Cat. 4: 150/50 Mbps (DL/UL)
• Work Bands:
– FDD Lte: B1, B2, B3, B4, B5, B7, B20, B28
– UMTS/HSPA+ B1, B2, B3, B5,B8
• Data Services, application administration, etc.
• PIN management
• RNDIS
• APN auto-math

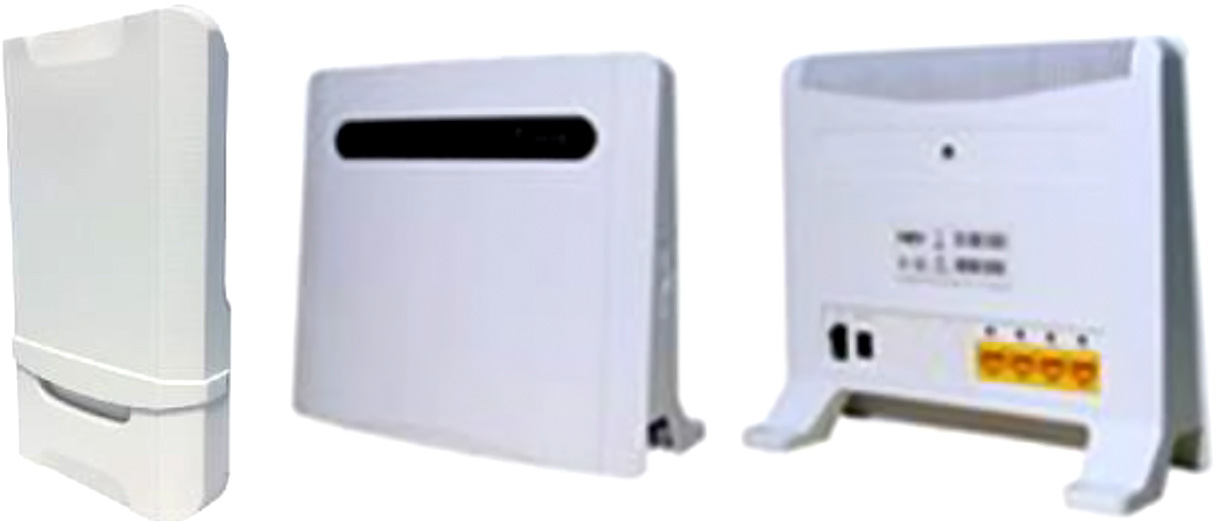

Router 4G Cat4 for exterior
Voice and Data

Technical characteristics

• Configuration in two units, ODU+IDU architecture
• ODU Unit (Outdoor Unit) transmission
• IDU Unit (Indoor Unit) integrates user’s functionalities (routing, WiFi y Voice)
• Complies with 3GPP Release 10 Cat.4
• Improve linkage capacity due to the antenna orientation to the base station that will provide the service
• Improved performance in terms of data transmission allowance up to 150 Mbps
Exterior Unit ODU:
• Work Bands:
– Version LTE TDD: B42, B43
– Version LTE FDD: B3, B7, B20 (Single Mode)
– Bandwidth for LTE channels 5/10/15/20 MHz
• Cellular Interface:
– LTE category 4
– SIM/USIM Card 1.8V y 3V in LTE mode
– Supports diversity in reception 1TX/2RX
– Out power LTE 23 dBm, based in 3GPP
– Reception sensitivity -95dBm
– Two LTE Internal Antennae with Improvement 14dBi
• Data transmissions:
– FDD LTE: 150/50 Mbps (DL/UL), category 4
– TDD LTE: 120/30 Mbps (DL/UL), category 4
Interior Unit IDU :
• WiFi Interface:
– Access Point 802.11b/g/n; 2,4 GHz
– Two internal antennae 3dBi
– LAN Interface o 4 x RJ45 Ethernet 10/100 auto-sensing, auto-MDI/MDIX
– PoE Exterior Unit (ODU)
• Voice Interface (Opcional)
– 1x RJ11 FXS port to connect the telephone
– VoIP/VoLTE/CSFB

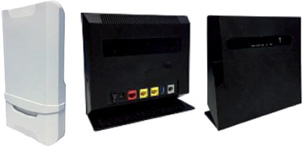

Router 4G Cat. 6 parted
assembly with exterior installation

Technical characteristics

• Configuration in two units, ODU+IDU architecture
• ODU Unit (Outdoor Unit) transmission
• IDU Unit (Indoor Unit) integrates the user’s functions (routing, WiFi y Voice)
• Complies with 3GPP Release10/11 Cat.6 with CA (Carrier Aggregation)
• Improves links capacity due to the antenna orientation towards the base station that will provide service
• Improved performance in terms of data transmission allowance up to 300 Mbps Exterior
Exterior Unit ODU:
• Work Bands:
– LTE Version TDD: B42, B43
– Band width for Channels LTE of 5/10/15/20 MHz
• Cellular Interface:
– LTE category 6
– Carrier Aggregation: B42+B42 ó B43+B43
– MIMO: 2×2 & 4×4
– End Power LTE: 23 dBm, based in 3GPP
– Sensibility in reception: -95dBm
– Four internal LTE antennas with Gain 11dBi
• Data transmission: o TDD LTE: 230/30 Mbps (DL/UL), category 6
Interior Unit ODU:
• Dual WiFi interface:
– Access point 802.11b/g/n/ac; 2,4 GHz/ 5 GHz
– Two internal antennas WiFi 2.4 GHz gain 2dBi
– Two internal antennas WiFi 5 GHz gain 2dBi
– Bandwidth 2.4 GHz channels 20/40 MHz
– Frequency 5 GHz Channels 36,40,44,48
• LAN interface:
– 2 x RJ45 Ethernet 10/100/1000 auto-sensing, auto-MDI/MDIX
– PoE for outdoor unit ODU)
• Voice Interface (Optional):
– 1x RJ11 FXS port for telephone connection
– VoIP/VoLTE/CSFB
